iPhone Duo Thermal System Defeats Overheating
Recently, the technology publication PCMag published an insightful blog post regarding Apple hardware. They interviewed two prominent Apple executives. This conversation unveiled the intricate hinge thermal management solution of the highly anticipated iPhone Duo.
Dan Murray, the Vice President of Silicon Engineering at Apple, shared crucial details. Banafsheh Barabadi, the Senior Manager of Thermal Product Design, also provided valuable insights. Together, they explained Apple’s bespoke thermal architecture. These brilliant innovations maximize the sustained performance output of the A20 Pro chip. Therefore, users will experience unparalleled speeds across the iPhone 18 Pro, iPhone 18 Pro Max, and the innovative iPhone Duo.
Revolutionary A20 Pro Packaging
Regarding the A20 Pro packaging, this silicon marvel utilizes a Wafer-Level Multi-Chip Module (WMCM) design. Engineers strategically relocated the DRAM from above the main processor to its side. According to the interview, Apple asserts that this structural layout establishes a direct thermal pathway. Heat travels rapidly from the silicon straight to the vapor chamber. Consequently, this change effectively eliminates the thermal bottlenecks previously found in Package-on-Package (PoP) configurations.
Within the iPhone 18 Pro and Pro Max, the vapor chamber surface area is massive. In fact, it is three times larger than the chamber found inside the iPhone 17 Pro. It also houses a greater volume of deionized water to facilitate cooling. Furthermore, this vapor chamber concurrently serves as a robust mechanical chassis. The battery and logic board sit directly upon it. Impressively, it consists of 80 percent recycled stainless steel.
Advanced Screen Cooling Materials
Additionally, Apple incorporates a nano-twinned copper sheet onto the back of the display. They carefully overlay this metal with a highly thermally conductive graphite layer. Together, these two premium materials enhance lateral heat dissipation across the screen. This effectively mitigates localized thermal hotspots. Simultaneously, it provides the essential mechanical strength required by the display panel.
Mastering Foldable Thermal Dynamics

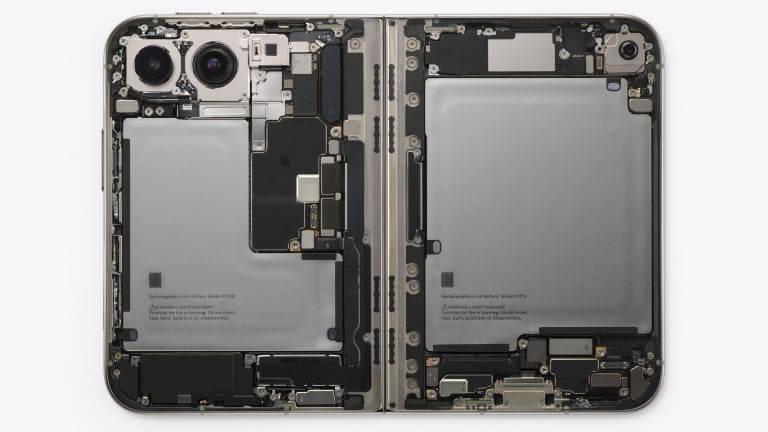

The iPhone Duo utilizes a noticeably thinner vapor chamber than its traditional counterparts. Apple suspended this cooling element perfectly in the center of the chassis. Because folding the device naturally doubles its physical thickness, engineers had to innovate. Remarkably, Apple routed a flexible graphite pipe through the hinge to connect the cooling structures on both sides.
This flexible graphite pipe is a remarkably pliable, heat-conducting component. Designers can effortlessly bend and route it within severely constrained spaces. It efficiently channels thermal energy away from heat-generating zones toward cooler areas. Manufacturers frequently apply this clever technique to dissipate heat within compact electronic devices like smartphones and premium laptops.
Ultimately, Apple states that this advanced thermal management system seamlessly supports heavy workloads. Users can enjoy intensive gaming, prolonged video recording, and demanding on-device artificial intelligence tasks. Consequently, the sustained GPU performance of the iPhone 18 Pro boasts an impressive 35 percent improvement over the iPhone 17 Pro. Moreover, the A20 Pro chip itself delivers a 20 percent increase in CPU performance and a staggering 40 percent leap in graphics prowess.
